Mercedes-Euklid (1905)

Martin (US), pages 156 - 163

Martin (Dtsch), pages 165 - 174 & 433 - 435



"Designer: Christel Hamann of Berlin. Manufacturer: Mercedes Office Machine Works of  Berlin. The principle upon which all Euklid models have been based differs entirely from the calculating machine systems so far described. The actuating mechanism consists of ten parallel racks that are proportionally displaced by a lever connected to the racks."





source: R.Rehbein







Prof. C. Hamann: Diagram to explain the proportional lever





for a comprehensive overview of the development of the Mercedes-Euklid read the article of E.Anthes (in German).



Aus der Geschichte der MERCEDES-EUKLID Rechenmaschinen





        Production numbers





year

model

total



I

II

III

IV

V

VI

VII

VIII

Plus

Gauss


1910 8               22 19 49
1911 31               10 12 53
1912 210                   210
1913 393     5 3           401
1914 360 6 6 28 20 6 8       434
1915 7     2 1           10
1916 23     1             24
1917 17                   17
1918 7         1         8
1919 421     37 1   7 3     469
1920 1064     70 17 3 118 26     1298
1921 93     129 54 10 359 180     825
1922 218     111 24 8 246 223     830
total 2852 6 6 383 120 28 738 432 32 31

  source: Historische Bürowelt, Ausgabe 39, page 5,  9.94 (IFHB)







M.Reese and Prof.E.Anthes published a time table, serial number and model overview:



rechts klicken zum kopieren, links zum öffnen (2MB, in German) Beilage zur HBw-Aktuell 5/2000 (IFHB











        Model I



principle  proportional gear

capacity

 9 (w cr) x 8 (w tc) x 16

input  slides
prod. years  1910 - 1927
mach. built  ca. 7.000 - 8.000
features  stop division
dimensions  37 x 21 x 20 cm
weight  13 kg
known s/n

 1 - 11.000


for bigger and more pictures, click on the picture

                                                                                                                       source: Mathias Leder



        Model II  as model I, but smaller capacity







        Model III as model I, but no division

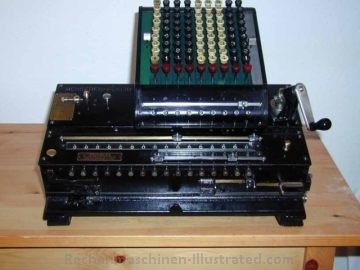

        Model IV

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

   9 (w cr) x 8 (w tc) x 16

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1913 - 1927
mach. built  ca. 500 - 1.000
features  as model I
dimensions  37 x 21 x 29 cm
weight  18 kg
known s/n

 700 - 11.000, known: 10.193


for bigger and more pictures, click on the picture
      source: H.Weiffen







        Model V

principle  proportional gear

capacity

 9 (w cr) x 8 (w tc) x 16

input  slides
prod. years  1913 - 1927
mach. built  ca. 600
features  17 digit sum & complement register
dimensions  47 x 31 x 21 cm
weight  24 kg
known s/n

 700 - 11.000


for bigger and more pictures, click on the picture









        Model VI

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1914, 1918 - 1927
mach. built  ca. 400
features  as model V
dimensions  47 x 38 x 30 cm
weight  28 kg
known s/n

 1.100 - 11.000


for bigger and more pictures, click on the picture









        Model VII

principle  proportional gear

capacity

 9 (w cr) x 8 (w tc) x 16

 9 (w cr) x 8 (w tc) x 13

input  slides
prod. years  1919 - 1932
mach. built
features  electric, 8 digit multiplication register, automatic division & multiplication
dimensions  48 x 28 x 22 cm
weight  23 kg
known s/n

 1.600 - 16.000


for bigger and more pictures, click on the picture

                                                                                        source: HJ.Denker







        Model VIII

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

   9 (w cr) x 8 (w tc) x 16

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1919 - 1934
mach. built
features  as model VII
dimensions  48 x 28 x 34 cm
weight  28 kg
known s/n

 1.600 - 19.000


for bigger and more pictures, click on the picture
      source: H.Weiffen







        Model IX

principle  proportional gear

capacity

   9 (w cr) x 8 (w tc) x 16

 13 (w cr) x 8 (w tc) x 16

input  slides
prod. years  1925 - 1932
mach. built
features  automatic division,  comma automatic
dimensions  37 x 23 x 20 cm
weight  13.3 kg
known s/n

 10.000 - 17.000


for bigger and more pictures, click on the picture

                                                                                                                       source: W.Szrek







        Model X

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1925 - 1932
mach. built
features  as model IX
dimensions  38 x 23 x 29 cm
weight  19 kg
known s/n

 10.000 - 17.000, known 12.553


for bigger and more pictures, click on the picture
      source: W.Szrek









        Model XI

principle  proportional gear

capacity

 9 (w cr) x 8 (w tc) x 16

input  slides
prod. years  1925 - 1932
mach. built
features  as model IX, but electric
dimensions  39 x 26 x 21 cm
weight  18 kg
known s/n

 10.000 - 17.000


for bigger and more pictures, click on the picture

                                                                                                                       source: Michael







        Model XII

principle  proportional gear

capacity

 9 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1925 - 1932
mach. built
features  as model XI
dimensions  39 x 26 x 24 cm
weight  23 kg
known s/n

 10.000 - 17.000


for bigger and more pictures, click on the picture









Model 14 SZ

principle  proportional gear

capacity

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  from 1928
mach. built
features  electric, 16 digit sum and complement register
dimensions
weight
known s/n

 18 787


for bigger and more pictures, click on the picture
      source: A.Devaux

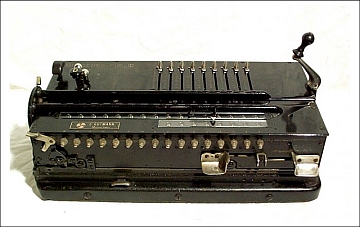

Model 15

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 16

input  sliders
prod. years  1927 - 1935
mach. built
features  automatic division, comma automatic
dimensions  37 x 23 x 20 cm
weight  13 kg
known s/n

 17.377


for bigger and more pictures, click on the picture
      source: A.Pohl







Model 16 (H)

principle  proportional gear

capacity

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1928 - 1935
mach. built
features  automatic division, comma automatic
dimensions
weight
known s/n

 12.500 - 22.500


for bigger and more pictures, click on the picture









        Model 18 (V)

combined full- and half-automate; for each calculation type only one button to operate; full-automatic positive and negative multiplication; half-automatic positive and negative multiplication; full-automatic division; automatic comma placement.

principle  proportional gear

capacity

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  1932 - 1935
mach. built
features  electric, automatic multiplication (+/-), automatic division (+/-)
dimensions
weight
known s/n

 16.500 - 22.500


for bigger and more pictures, click on the picture
      source: P.Elter / photos by T.Elter



rechts klicken zum kopieren, links zum öffnen (6MB, in German) Handbuch für die Mercedes-Euklid Model 18   (special thanks to T.Elter)







In the 50ties the following models were still build in the Mercedes factory: 21, 29, 37, 37SM, 38, 38SM with the prefix of "R", i.e. R29, etc. The green/black color was replaced by gray and the name changed from Mercedes Euklid to just Mercedes.

From ca. 1963 the machines were sold under the name Cellatron.



        Model 21 / 21(EP) / 22(E)

principle  proportional gear

capacity

 21 (EP) 9 (w/o cr) x 6 (w tc) x 12

 22 (E) 13 (w/o cr) x 8 (w t/c) x 16

input  full keyboard
prod. years  1933 - 1953
mach. built
features

 electric,  automatic division (+/-)

 new design

 21: separation of keyboard

dimensions  31 x 36 x 17 cm
weight  15 kg
known s/n

 17,000 - 114,000


for bigger and more pictures, click on the picture









Model 24 E (22 S)

principle  proportional gear

capacity

 13 (w cr) x 8 (w tc) x 16

input  full keyboard
prod. years  24E:  ca. 1933 - 1935

 22S: 1935 - 1953

mach. built
features

 electric, 16 digit storage register, 16 digit complement register

dimensions
weight
known s/n

 17 000 - 114 000


for bigger and more pictures, click on the picture

                                                                                    source: A.Devaux









        Model 29 / R29

principle  proportional gear

capacity

 7 (w/o cr) x 6 (w tc) x 12

 9 (w/o cr) x 6 (w t/c) x 12

input  full keyboard
prod. years  29:    1936 - 1952

 R29: 1953

mach. built
features

 automatic division

dimensions  31 x 33 x 20 cm
weight  13 kg
known s/n

 29: 26,500 - 96,000

 R29: 114,785
for bigger and more pictures, click on the picture
source: W.Szrek



rechts klicken zum kopieren, links zum öffnen (1MB, in German) Gebrauchsanleitung für die Mercedes-Euklid Model R29   (source: U.Horn)









        Model 30

principle  proportional gear

capacity

 7 (w/o cr) x 6 (w tc) x 12

 9 (w/o cr) x 6 (w t/c) x 12

input  full keyboard
prod. years  1936 - 1945
mach. built
features

 electric, stop division

dimensions  32 x 38 x 18 cm
weight  15 kg
known s/n

 26,400 - 57,300


for bigger and more pictures, click on the picture

                                                                                                                       source: H.Schneemann







Model 37 / R37

principle  proportional gear

capacity

 12 (w/o cr) x 6 (w tc) x 12

input  full keyboard
prod. years

 37:   1934 - 1944

 R37:

mach. built
features

 electric, full automatic, 12 digit complement register

dimensions  31 x 37 x 17 cm
weight  17 kg
known s/n

 37:    19,000 - 55,500

 R37:  104,521


for bigger and more pictures, click on the picture

                                                                                    source: A.Devaux









        Model 37SM / R37SM

rechts klicken zum kopieren, links zum öffnen (6MB, in German) Gebrauchsanleitung für die Mercedes-Euklid Model 37 / 37 SM   (source: E.Anthes)



principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 12 (w cr) x 6 (w tc) x 12

input  full keyboard
prod. years

 37SM:    1935 - 1944

 R37SM: 1954 - 1958

mach. built
features

 electric, full automatic, multiple multiplication, visible 12 digit storage register, 12 digit complement register

dimensions  31 x 37 x 17 cm
weight  18 kg
known s/n

 37SM:     22500 - 64,438

 R37SM:  98,381, 117,000 - 137,000


for bigger and more pictures, click on the picture



                                                                                source: R.Fedeli









        Model 38 / 38SM / R38SM

38: 16 dig. complement register

38SM: plus 16 dig. storage register, button for direct multiple multiplication

R38SM new version of the 38SM





rechts klicken zum kopieren, links zum öffnen (6MB, in German) Gebrauchsanleitung für die Mercedes-Euklid Model 38 / 38 SM   (source: E.Anthes)





principle  proportional gear

capacity

 16 (w/o cr) x 8 (w tc) x 16

input  full keyboard
prod. years  38:          1935 - 1953

 38SM:    1936 - 1953

 R38SM: 1954 - 1958

mach. built
features

 electric, full automatic

dimensions  36 x 37 x 17 cm
weight  18 kg
known s/n

 38:          22,500 - 114,000

 38SM:     26,500 - 114,000

 R38SM: 119,000 - 137,000


for bigger and more pictures, click on the picture

                                                                                                                       source: Greifswald







Model R43SM

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 16 (w/o cr) x 8 (w tc) x 16

input  full keyboard
prod. years  up to 1968
mach. built
features

 electric, full automatic, 16 digit storage register, back transfer

dimensions
weight
known s/n




for bigger and more pictures, click on the picture
      permission granted







Model R44SM

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 20 (w/o cr) x 10 (w tc) x 20

input  full keyboard
prod. years  1958 - 69
mach. built
features

 electric, full automatic, 20 digit storage register, as R43SM

dimensions  38 x 38 x 17 cm
weight  22 kg
known s/n

 131.923

price  4.980,- DM (1958)
for bigger and more pictures, click on the picture
      source: E.Anthes







Model R31

principle  proportional gear

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 6 (w tc) x 12

input  full keyboard
prod. years  1963 - 69
mach. built
features

 electric, half automatic, last model of the Euklid series

dimensions
weight
known s/n

 174.178

price
for bigger and more pictures, click on the picture
      source: E.Anthes
