Precisa (1935)



Martin (Dtsch), pages 445 - 446







Manufacturer: Rechenmaschinenfabrik Precisa AG, Seengen, Switzerland





M1





principle  toothed bar

capacity

 10 x x 11

input  10 keyboard
prod. years  1935 - 1944
mach. built  22,000
features  2-species. osc- main axes
dimensions  25 x 34 x 17 cm
weight  7.5 kg
known s/n  15,472, 19,732

for bigger and more pictures, click on the picture
      source: HJ.Denker

















Model 108-10



model 108-8 with capacity 8 (w/o cr) x x 9



principle  tooth rack, pin storage

capacity

 10 (w/o cr) x x 11

input  10 keyboard
prod. years  1961 - 1978
mach. built
features  2-species. osc- main axes
dimensions  20 x 31 x 15 cm
weight  4.5 kg
known s/n  DA 42,116

for bigger and more pictures, click on the picture
      source: A.Jeanroy















Model 117



principle  divided pin wheel

capacity

 9 x 8 x 13 , 13 x 8 x 13

input  10 keyboard
prod. years  1952 - 1963
mach. built
features  similar to Facit TK
dimensions  29 x 22 x 15 cm
weight  6.9 kg
known s/n  194.194, 256.259

for bigger and more pictures, click on the picture
      source: HJ.Denker











Hermes 117





principle  divided pin wheel

capacity

 9 x 8 x 13

input  10 keyboard
prod. years  1952 - 1963
mach. built
features  identical to Precisa 117
dimensions  31 x 21 x 15 cm
weight  6.8 kg
known s/n  379.201

for bigger and more pictures, click on the picture
      source: HJ.Denker







note: since 1968 for all models the serial number has a prefix:

A=1968, B=1969, C=1970, ....., K=1977

exception: models 108, 208, 308





Precisa 160-8 / 160-12

principle  tooth rack, pin storage

for bigger and more pictures, click on the picture

capacity

  8 (w/o cr)  x  x   9  (160-8)

12 (w/o cr)  x  x 13  (160-12)

input  10 keyboard
prod. years  1961 - 1975
mach. built  165,372 (160 + 162)
features  electric
dimensions  24 x 28 (32) x 16 cm
weight  7 kg
known s/n  D 97 453, E 1922 435

for bigger and more pictures, click on the picture
      source: R.Fedeli









Precisa 164-12

principle  tooth rack, pin storage

for bigger and more pictures, click on the picture

capacity

 12 (w/o cr)  x  x 13

input  10 keyboard
prod. years  1963 - 1974
mach. built  264,695
features  electric, autom. multiplication, storage
dimensions  24 x 28 (32) x 16 cm
weight  8 kg
known s/n  715,408

for bigger and more pictures, click on the picture
      source: R.Fedeli









Precisa 166-12

principle  tooth rack, pin storage

capacity

 12 (w/o cr)  x  x 13

input  10 keyboard
prod. years  1966 - 1976
mach. built  177,781
features  electric, autom. mult & div, storage
dimensions  26 x 38 x 18 cm
weight  9 kg
known s/n  B 916,990, E 117,308

for bigger and more pictures, click on the picture
      source: A.Jeanroy







Precisa 176 Triomatic

construction: W.Heinze, W.Jülich

literature:  E.Anthes: Dr.Ing. Helmut Gelling, in Historische Bürowelt, 41 (1995), S.21-28

principle  adding segment

for bigger and more pictures, click on the picture

capacity

 12 (w/o cr) x x 13

input  10 keyboard
prod. years  1959 - 1963
mach. built
features  3-species, electric, printing, autom.multiplication, back transfer
dimensions  26 x 34 x 17 cm
weight  11 kg
known s/n  264.021
price  DM 2.650,- (1961)
for bigger and more pictures, click on the picture
      source: E.Anthes

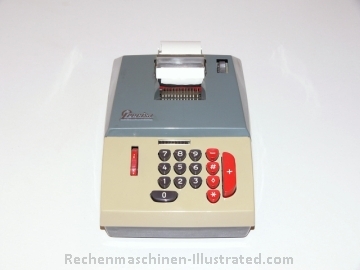

Model 208-10

model 208-8 with capacity 8 (w/o cr) x x 9

also marketed under the label Japy

principle  tooth rack, pin storage

capacity

 10 (w/o cr) x x 11

input  10 keyboard
prod. years  1962 - 1978
mach. built
features  2-species
dimensions  20 x 31 x 15 cm
weight  5 kg
known s/n  DD13,340, DE6,759

for bigger and more pictures, click on the picture
      source: A.Jeanroy









Precisa 364-12

principle  tooth rack, pin storage

capacity

 12 (w/o cr)  x  x 13

input  10 keyboard
prod. years  1967 - 1974
mach. built
features  electric, simplified version of model 164
dimensions  24 x 31 x 17 cm
weight  8 kg
known s/n  C 81,914

for bigger and more pictures, click on the picture
      source: A.Jeanroy







last updated: 18-Mai-13
