Torpedo-Schnelladdiermaschine (1933)

Martin (US), page  -

Martin (Dtsch), pages 460 - 461



"Nine digit adding maschine from the Torpedo-Werke A.G., Frankfurt a. Main. The machine works without an actuator, i.e. pressing the number keys directly reflects in the result. Subtraction is done by using the complement numbers."



principle  rocker arm

capacity

 9 x x 9

input  half keyboard
prod. years  from 1933
mach. built
features  1-species
dimensions  23 x 15 x 11 cm
weight  2.5 kg
known s/n  5.990, 7.282, 16.175

for bigger and more pictures, click on the picture

                                                                                                                       source: XSibirian_HuskyX







Friden (1934)

Manufacturer: Friden Calculating Machine Company, San Leandro, USA



designer: Carl Friden (1891 - 1945)



From Wikipedia

Carl Friden (April 11, 1891-April 29, 1945) was a Swedish born American mechanical engineer and businessman who founded the Friden Calculating Machine Company (Friden, Inc.) in San Leandro, California in 1934. Prior to founding his own company, Friden had been a chief designer for the Marchant Calculating Machine Co. of Oakland His machines were robust and quickly became popular.

Friden's company introduced a calculator that included a square root function in 1952, then went on in 1963 to introduce the model EC-130, the fully transistorized electronic calculator. In 1965 the company was purchased by the Singer Corporation.





Literature and links:



Martin Reese  "Neue Blicke auf alte Maschinen"   (page 39 ff.)  (IFHB)



Friden D

principle  stepped drum

capacity

 10 (w/o cr) x 11 (w tc) x 21

 also

 8 (w/o cr) x 9 (w tc) x 16

input  full keyboard
prod. years  1940 - 1949
mach. built
features  electric, semi-automat, full automatic division
dimensions  46 x 37 x 23 cm
weight
known s/n  206,001 - 225,450

for bigger and more pictures, click on the picture
      source: A.Devaux







Friden H

principle  twin divided stepped drum

for bigger and more pictures, click on the picture

  capacity

 8 (w/o cr) x 9 (w tc) x 16

input  full keyboard
prod. years  1936 - 1952
mach. built
features
dimensions  42 x 36 x 22 cm
weight  13 kg
known s/n  51.909

for bigger and more pictures, click on the picture
      source: E.Anthes









Friden S

principle  twin stepped drum

for bigger and more pictures, click on the picture

  capacity

   8 (w/o cr) x 9 (w tc) x 17  also

 10 (w/o cr) x 11 (w t/c) x 21

input  full keyboard
prod. years  ca. 1940
mach. built
features  electric, full-automat, sep. input of mult. factor
dimensions
weight
known s/n  104,952

for bigger and more pictures, click on the picture
      source: R.Chirico









Friden SBT

principle  stepped drum

capacity

 10 (w/o cr) x 11 (w tc) x 20

input  full keyboard
prod. years  ca. 1959 - 1965
mach. built
features  electric, full-automat, back transfer
dimensions  46 x 37 x 23 cm
weight  19 kg
known s/n  933,611.J.J

for bigger and more pictures, click on the picture
       source: A.Devaux









Friden SRW

using a modified Toepler method for calculation of the square root

Reese, Lange, Anthes: Der Friden Wurzelautomat, in: Beiträge zur Geschichte der mech. Rechenmaschinen. Grüne Reihe der Päd.Hochschule Ludwigsburg (1998)

principle  stepped drum

capacity

 10 (w/o cr) x 11 (w tc) x 20

input  full keyboard
prod. years  1952 - 1966
mach. built  9,500
features  electric, full-automatic square root
dimensions  46 x 37 x 23 cm
weight  19 kg
known s/n

 875,001 - 884,490

 10,878,705A, 10,811,827JJ


for bigger and more pictures, click on the picture
      source: A.Devaux







Friden ST

principle  stepped drum

capacity

 10 (w/o cr) x 11 (w tc) x 20

input  full keyboard
prod. years  1940 - 1950
mach. built
features  electric
dimensions
weight
known s/n  107,776 - 208,148

for bigger and more pictures, click on the picture
      source: A.Devaux









Friden STW

principle  stepped drum

capacity

 10 (w/o cr) x 11 (w tc) x 20

input  full keyboard
prod. years  ca. 1949 - 1966
mach. built
features  electric, full-automat
dimensions  46 x 37 x 23 cm
weight  18 kg
known s/n  462,275, 642,417

for bigger and more pictures, click on the picture
      source: A.Devaux









Alfa - Aldo-Bona (1935)

Martin (US), page  -

Martin (Dtsch), pages 388 - 389



Manufacturer: Aldo-Bona, Milano, Italy

Construction: Giuseppe Inzadi

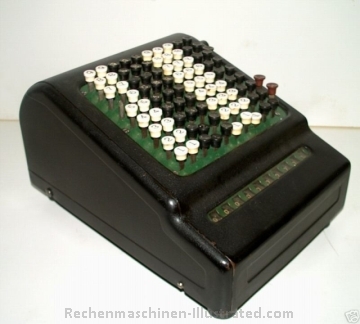

Alfa Junior

principle  tooth rack

capacity

 10 (w/o cr) x  x 10

input  full keyboard
prod. years  ca. 1948
mach. built
features  1 species
dimensions
weight  7 kg
known s/n  2,828

for bigger and more pictures, click on the picture



                                                                                        source: FM.Faes









Sojuz-Org-Ucet (1935)

Manufacturer: N.K.T.P. Peoples Comm. Heavy Production, UdSSR

see also Odhner Soviet (past revolution) production

principle  pin wheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1935
mach. built
features
dimensions  32 x 12 x 14 cm
weight  5 kg
known s/n  4.337

for bigger and more pictures, click on the picture
      source: HJ.Denker





also marketed under the name Standard No 5

Standard No 5

principle  pin wheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1935
mach. built
features
dimensions  28 x 14 x 12 cm
weight  4 kg
known s/n  11.090

for bigger and more pictures, click on the picture
      source: W.Szrek









Vaucanson (1936)

Manufacturer: Ateliers Vaucanson, Paris, France



Model A

principle  pin wheel

for bigger and more pictures, click on the picture

capacity

 7 (w/o cr) x 5 (w/o tc) x 10

input  cursors, rotating
prod. years  around 1929
mach. built
features
dimensions  32 x 16 x 11 cm
weight  5 kg
known s/n  407

for bigger and more pictures, click on the picture
      source: H.Kremer







Model A.V.A. 13 , A.V.A. 13T

principle  pin wheel

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  around 1936
mach. built
features
dimensions  36 x 19 x 15 cm
weight  7.9 kg
known s/n  14,625, 25,392, 32,272, 32,901

for bigger and more pictures, click on the picture
      source: HJ.Denker







Model A.V.A. 20

principle   pin wheel

capacity

 10 (w cr) x 11 (w tc) x 20

input  cursors, rotating
prod. years
mach. built
features
dimensions  42 x 19 x 15 cm
weight  10 kg
known s/n  20,455, 40,2xx, 41,496

for bigger and more pictures, click on the picture

                                                                                                                       source: R.Rehbein







Model A.V.B. 13

principle  pinwheel

capacity

 10 x 8 x 13

input  cursors, rotating
production years  ca. 1936
machines built  ????
features

known s/n  30.726, 5.687


for bigger and more pictures, click on the picture

                                                                                                                       source: E.Kniesel





Model D

principle  pinwheel

capacity

 10 x 11 x 20

input  cursors, rotating
production years  ca. 1936
machines built  ????
features

known s/n  20.104, 20.336


for bigger and more pictures, click on the picture

                                                                                                                       source: F.Haeghens







Pascal A.V. 13T

principle  pinwheel

capacity

 10 x 8 x 13

input  cursors, rotating
production years  ca. 1955
machines built
features  very similar to A.V.A 13

known s/n  33.219


for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker







Saldorita (1937)

manufacturer: Saldoritaverken, Motala (S)



principle  ratchet with tenth carry

capacity

 8 x  x 9

input  cursors
production years  around 1937
machines built
features  2 species machine

known s/n  2.215

for bigger and more pictures, click on the picture

                                                                                                                       source: T.Leipälä







Add-O-Matic (1937)

manufacturer: Allied Manufacturing Company of Chicago, Illinois (US)

video about Add-O-Matic on retrocalculators.com



principle  chain adder

for bigger and more pictures, click on the picture

capacity

 5  x x 5

input  sliders
prod. years  1937 ?
mach. built
features
dimensions
weight
known s/n

for bigger and more pictures, click on the picture
      source: Thomas A. Russo











Schubert (1938)



Manufacturer: Schubert & Co. KG, Rastatt, Germany

Emil Schubert was forced out of his company Thales in 1936 and founded his new company in 1938.



rechts klicken zum kopieren, links zum öffnen (91 kB) table of Thales and Schubert machines

Reese, Martin:  Emil Schubert: Firmengründer und Konstrukteur der "Thales"- und "Schubert"- Sprossenradmaschinen. see below





Literature and links:



Reese, Martin:  Emil Schubert: Firmengründer und Konstrukteur der "Thales"- und "Schubert"- Sprossenradmaschinen.

part 1: Historische Bürowelt Nr. 56, 2000, S. 13-22. (IFHB)

part 2: Historische Bürowelt Nr. 57, 2000, S. 9-16. (IFHB)

part 3: Historische Bürowelt Nr. 58, 2000, S. 10-15. (IFHB)



Martin Reese  "Neue Blicke auf alte Maschinen"   (page 69 ff.)  (IFHB)





Schubert A

principle  pinwheel

capacity

 6 (w cr) x 6 (w tc) x 10

input  cursors, rotating
prod. years  1938 - 1942
mach. built
features
dimensions  28 x 15 x 14 cm
weight  4.5 kg
known s/n  around 40 000, 502 540

for bigger and more pictures, click on the picture

                                                                                                                       source: H.Kremer







Schubert AR

principle  pinwheel

capacity

 6 (w cr) x 6 (w tc) x 10

input  cursors, rotating
prod. years  1938 - 1942
mach. built
features  back transfer
dimensions  28 x 15 x 14 cm
weight  4.5 kg
known s/n  around 40.000

for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker









Schubert CRV

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 11

input  cursors, rotating
prod. years  ca. 1955 - 1972
mach. built
features  back transfer
dimensions  32 x 14 x 13 cm
weight  5 kg
known s/n  140.924, 650.092

for bigger and more pictures, click on the picture

                                                                                                                       source: M.Meissner





Schubert CW

principle  pinwheel

capacity

 6 (w cr) x 6 (w tc) x 11

input  cursors, rotating
prod. years  1956 - 1972
mach. built
features
dimensions  32 x 14 x 13 cm
weight  5 kg
known s/n  75 H-037, 75 N-300

for bigger and more pictures, click on the picture

                                                                                                                       source: H.Kremer





Schubert DR

principle  pinwheel

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1946 - 1954
mach. built
features  back transfer
dimensions  33 x 14 x 13 cm
weight  5.1 kg
known s/n  150.012, 490.778, 514.051

for bigger and more pictures, click on the picture

                                                                                                                       source: D.Boelter





Schubert DRV

also marketed as Rokli 7RS and as ADM Teacher for the UK market

principle  pinwheel

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1952 - 1959
mach. built
features  back transfer, one-hand oper.
dimensions  33 x 15 x 14 cm
weight  5.5 kg
known s/n  161.982, 166.409, 172.146, 55M-261
price  598,- DM (1959)
for bigger and more pictures, click on the picture

                                                                                                                       source: Greifswald





Schubert E

principle  pinwheel

capacity

 10 (w cr) x 8 (w tc) x 16

input  10 keyboard
prod. years  1963 - 1966
mach. built  ca. 550
features  back transfer
dimensions  33 x 25 x 16 cm
weight  8 kg
known s/n  EV 100-130, E 1.001-1.300
 E 300.001 - 300.210
for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker







Maruzen (1938)

"Maruzen merged with Taiyo and incorporated Maruzen Calculating Machine Co, Ltd. which was later renamed to Maruzen Jimukikai & Co, Ltd."

from: K.Kadokura

literature and links:

Katsunori Kadokura: The History of Japanese Mechanical Calculating Machines



principle  pinwheel

capacity

 9 x 10 x 18

input  cursors, rotating
production years  from 1938 / 39
machines built
features

known s/n  182.225

for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker







Allen (1939)

Manufacturer: R.C.Allen Calc., Michigan (USA)



Model T

Manufacturer: Facit, Atvidaberg (S)

distributor:      R.C.Allen Calc., Michigan (USA)

principle  divided pinwheel

capacity

 9 x 8 x 13

input  10 keyboard
production years  1932 - 1939 (incl. Facit)
machines built
features  identical to Facit T

known s/n   15.001 - 25.330

for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker





Model 35

principle  divided pinwheel

capacity

 9 x 8 x 13

input  10 keyboard
production years  1939 - 1943
machines built
features  electric
 identical to Facit EA
 short multiplication, autom. short division
known s/n   24.120

for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker







Zolnay Endre (1939)

Manufacturer: Zolnay Endre, Losonc, Hungary



literature and links:

D.Bölter

principle  friction coupling

for bigger and more pictures, click on the picture

capacity

 4 (w cr) x  x 8

input  tooth wheel
prod. years  1939
mach. built  2 machines known
features  2 species
dimensions  13 x 10 x 8 cm
weight
known s/n  1 021

for bigger and more pictures, click on the picture
      source: D.Bölter







Swift (1939)

Manufacturer: Swift Business Mach., New York (USA)

principle   tooth rack

for bigger and more pictures, click on the picture

capacity

 8 (w cr) x   x 9

input  10 keyboard
prod. years  from 1939
mach. built
features  1 species, repeat button
dimensions  15 x 20 x 11 cm
weight
known s/n  917.192

for bigger and more pictures, click on the picture
      source: HJ.Denker







Antares (1940)

Manufacturer: Pozzi S.P.A., Milano, Italy & Antares S.P.A., Milano, Italy.



P3

principle   pinwheel

for bigger and more pictures, click on the picture

capacity

 10 x 8 x 13

input  cursors, rotating
prod. years  from 1949
mach. built
features
dimensions
weight
known s/n  around 15.000

for bigger and more pictures, click on the picture
      source: HJ.Denker







P4

principle   pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years
mach. built
features
dimensions  32 x 16 x 13 cm
weight  5 kg
known s/n  21.252

for bigger and more pictures, click on the picture
      source: P.Ruff









P6 / P7

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 x 8 x 13

input  cursors, rotating
production years  ca. 1940
machines built  ????
features

known s/n  50.726, 55.290


for bigger and more pictures, click on the picture

                                                                                                                       source: F.Haeghens







P30

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 x 11 x 20

input  cursors, rotating
production years  ca. 1940
machines built  ????
features  back transfer

known s/n  30/5237


for bigger and more pictures, click on the picture

                                                                                                                       source: R.Rehbein







Numeria (1940)

manufacturer: SICMU (Società Italiana Commercio Macchine Ufficio)

distributor: Lagomarsino S.p.A., Milano, Italy

later also manufactured by Lagomarsino



literature and links:

R. Atzbach shows details of this un-common pinwheel construction

Reese, Haertel: Numeria - Nur scheinbar eine Monroe-Tochter.



source: E.Anthes





source: HJ.Denker







model 5905

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 11 (w/o tc) x 21

input  full keyboard
prod. years
mach. built
features  clearance of result register can be split 9 - 12
dimensions  42 x 27 x 19 cm
weight  8 kg
known s/n  73 635

for bigger and more pictures, click on the picture
      source: A.Jeanroy







model 7101

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 6 (w/o tc) x 14

input  full keyboard
prod. years
mach. built
features
dimensions  34 x 22 x 20 cm
weight  6.4 kg
known s/n  39.135, 41.659, 44.664

for bigger and more pictures, click on the picture
      source: HJ.Denker







model 7903

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 11(w/o tc) x 21

input  full keyboard
prod. years
mach. built
features  clearance of result register can be split 9 - 12
dimensions  42 x 27 x 18 cm
weight  7 kg
known s/n  41 957

for bigger and more pictures, click on the picture
      source: A.Jeanroy







Dixi (1940)

manufacturer: AB Dixma, Malmö (S)



principle  tooth rack

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x  x 11

input  10 keyboard
prod. years  1940 - 1963
mach. built
features
dimensions
weight
known s/n

for bigger and more pictures, click on the picture
      source: I-L.Thorberg







last updated: 21-Feb-12
