Thales (1911)



Martin (US), pages 253 - 254

Martin (Dtsch), pages 271 - 272 & 455 - 456



"The Thales is a well-established calculating machine with pinwheel gears  that has been produced in four models. The manufacturer is the Thaleswerk, Rechenmaschinen-Spezialfabrik G.m.b.H. in Rastatt (Baden), (formerly Landau in Pfalz). "

Designer: Emil Schubert

rechts klicken zum kopieren, links zum öffnen (91 kB) table of Thales and Schubert machines

Reese, Martin:  Emil Schubert: Firmengründer und Konstrukteur der "Thales"- und "Schubert"- Sprossenradmaschinen. see below





Literature and links:



Reese, Martin:  Emil Schubert: Firmengründer und Konstrukteur der "Thales"- und "Schubert"- Sprossenradmaschinen.

part 1: Historische Bürowelt Nr. 56, 2000, S. 13-22. (IFHB)

part 2: Historische Bürowelt Nr. 57, 2000, S. 9-16. (IFHB)

part 3: Historische Bürowelt Nr. 58, 2000, S. 10-15. (IFHB)



Martin Reese  "Neue Blicke auf alte Maschinen"   (page 69 ff.)  (IFHB)



Note: Thales machines were marketed under the label Muldivo mainly in Great Britain



Thales manual from 1938 (incomplete) including a overview of models

source: W.Szrek   to open the pdf file  rechts klicken zum kopieren, links zum öffnen click on the picture







A Thales catalog from 1939 in Polish:

for bigger and more pictures, click on the picture





















































source: W.Szrek   for bigger and more pictures, click on the picture

















source: W.Szrek  1938















Model A (1.)



also distributed under the label Ebstein-Frères mainly in France





principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1912 - 1924
mach. built
features  spring-loaded carriage
dimensions  24 x 12 x 9 cm
weight  4 kg
known s/n  1 - 15,000

for bigger and more pictures, click on the picture
      source: W.Szrek



















Model A (2.)



principle  pinwheel

or bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1920
mach. built
features  spring-loaded carriage
dimensions  31 x 13 x 10 cm
weight  3.6 kg
known s/n  16,511, 19,786

for bigger and more pictures, click on the picture
      source: F.Salvatore





















Model A (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1930 - 1940
mach. built
features  spring-loaded carriage
dimensions  34 x 15 x 13  cm
weight  5.4 kg
known s/n  47.296, 74 919 , 75 180

for bigger and more pictures, click on the picture
       source: H.Kremer

















Model AE (1.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years
mach. built
features



dimensions
weight
known s/n  15.888

for bigger and more pictures, click on the picture
      source: V.Monnier















Model AE (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1920 - 1930
mach. built
features



dimensions  32 x 14 x 12 cm
weight  5 kg
known s/n  14,308, 28,062

for bigger and more pictures, click on the picture

















Model AE (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca.1930 - 1940
mach. built
features

 clearance with gear box

dimensions  34 x 15 x 15 cm
weight  6 kg
known s/n  low 48,673, high 73,219

for bigger and more pictures, click on the picture

                                                                                                                      source: H.Schneemann









Richmond



identical to Thales A / AE, distributed mainly in France



principle  pinwheel

for bigger and more pictures, click on the picture

capacity



input
prod. years
mach. built
features
dimensions
weight
known s/n  19.982

for bigger and more pictures, click on the picture



                                                                                        source: HJ.Denker













Olympia AE



identical to Thales AE



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

input
prod. years
mach. built
features
dimensions
weight
known s/n  58.916

for bigger and more pictures, click on the picture



                                                                                        source: HJ.Denker















Model AR (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years
mach. built
features

 back transfer

dimensions  29 x 15 x 15 cm
weight
known s/n  69.421, 74.606

for bigger and more pictures, click on the picture

                                                                                                                       source: F.Haeghens

















source: W.Szrek  1938











        Model B (1.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years  from 1913
mach. built
features



dimensions  29 x 12 x 10 cm
weight
known s/n  3.183, 6.829, 12.568

for bigger and more pictures, click on the picture



                                                                                        source: W.Szrek

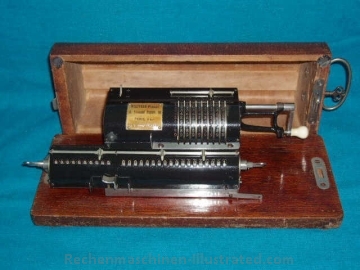

Ebstein-Frères



identical to Thales B, distributed mainly in France by Ebstein



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

input
prod. years
mach. built
features
dimensions
weight
known s/n  9.091

for bigger and more pictures, click on the picture



                                                                                        source: HJ.Denker

















source: W.Szrek  1938













Model C (1.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca. 1919
mach. built  ca. 6000
features

 autom. switch of the counter reg. for division, spring-loaded carriage

dimensions  28 x 13 x 10 cm
weight  4.6 kg
known s/n  low:   5,999
 high: 7,967
for bigger and more pictures, click on the picture









Model C (2.)

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca. 1923
mach. built
features  as C(1), clearance with crank
dimensions  30 x 13 x 10 cm
weight  4.6 kg
known s/n  13.517, 13.557

for bigger and more pictures, click on the picture
      source: G.Buchmann







        Model CE (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca. 1925
mach. built
features



dimensions  31 x 14 x 12 cm
weight  5.7 kg
known s/n  15,813, 22,546, 22.620

for bigger and more pictures, click on the picture

                                                                                                                       source: F.Meyer













        Model CE (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca.1930 - 1940
mach. built
features

 clearance with gear box

dimensions  34 x 14 x 14 cm
weight  6.2 kg
known s/n  34,859, 50,494

for bigger and more pictures, click on the picture

                                                                                                                       source: D.Boelter

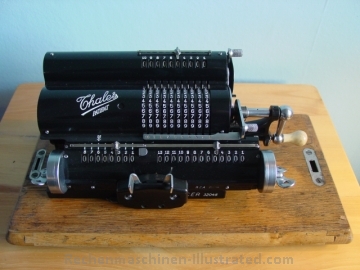

Model CER (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca. 1938 - 1948
mach. built
features

 back transfer

dimensions  34 x 14 x 14 cm
weight  6 kg
known s/n  32,048 , 69,924

for bigger and more pictures, click on the picture

                                                                                                                       source: S.Wolff

















      Model CER (4.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca.1952 - 1965
mach. built
features

 back transfer

dimensions  32 x 16 x 14 cm
weight  6 kg
known s/n  83.439, ...., 117.552

for bigger and more pictures, click on the picture

                                                                                        source: F.Haeghens









        Model CER/D (4.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  around 1955
mach. built  only 10 ?
features

 back transfer

 integrated printer

 one-hand carriage movement

dimensions  32 x 15.5 x 25 cm
weight  7.5 kg
known s/n  155.215

for bigger and more pictures, click on the picture

                                                                                                                       source: HJ.Denker

















Model CES (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  from 1932
mach. built
features

 13 digit storage register

 2 digit input counter

dimensions  38 x 23 x 19 cm
weight  12 kg
known s/n  31.105

for bigger and more pictures, click on the picture
      permission granted

















source: W.Szrek  1938















Model D (1.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 12 (w/o cr) x 10 (w tc) x 18

input  cursors, rotating
prod. years  ca. 1923
mach. built
features
dimensions  45 x 20 x 15 cm
weight  9 kg
known s/n  10.xxx, 12.039, 12.161, 12.744

 for bigger and more pictures, click on the picture
      source: V.Monnier

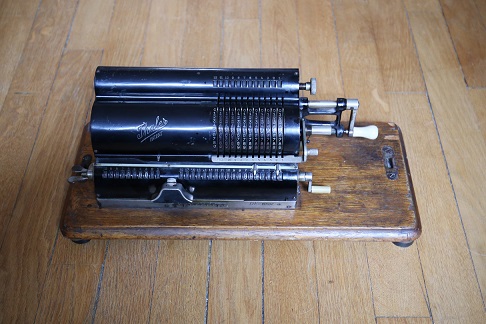

Model DE



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 12 x 10 x 18

input  cursors, rotating
prod. years  ca. 1925
mach. built
features
dimensions  45 x 20 x 15 cm
weight  9 kg
known s/n  15402

 for bigger and more pictures, click on the picture
      source: Rémi

















        Model DER/S (4.)



model CER/S is identical to DER/S but with a capacity of 10 x 8 x 13





principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 12 (w cr) x 10 (w tc) x 18

input  cursors, rotating
prod. years  around 1960
mach. built
features

 back transfer

 add.storage register 19 (w tc)

dimensions  40 x 23 x 19 cm
weight  13 kg
known s/n  around 150.000

for bigger and more pictures, click on the picture











source: W.Szrek  1938









Model GE



see also Muldivo Thales GE



principle  pinwheel



capacity

 20 (w cr) x 12 (w tc) x 20

input  cursors, rotating
prod. years
mach. built
features
dimensions
weight
known s/n

for bigger and more pictures, click on the picture











        Model GEO (1.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 2x9 (w cr) x 8 (w tc) x 2x13

input  cursors, rotating
prod. years  ca. 1930 - 1940
mach. built
features  carriage can be moved over  the whole distance; special for survey work
dimensions  36 x 19 x 16 cm
weight  14 kg
known s/n  30,829, 45,542, 53,680, 60.509

for bigger and more pictures, click on the picture

                                                                                                                       source: E.Kniesel











        Model GEO/R (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 2 x (9 (w cr) x 8 (w tc) x 13)

input  cursors, rotating
prod. years  ca. 1950 - 1960
mach. built
features  carriage can be moved over  the whole distance; special for survey work; back transfer
dimensions  36 x 19 x 16 cm
weight  15 kg
known s/n  82.000, 159.827

for bigger and more pictures, click on the picture















Model KA



variants: 2 species, 2-digit item counter, British currency, time (h/m/s), electric motor

a version for British currency was marketed under the name Figaro (see detailed pictures)



principle  pin lineal

for bigger and more pictures, click on the picture

capacity

 8 (w/o cr) x  x 9

input  full keyboard
prod. years  1952 - 1962
mach. built
features

 1 species machine

 see above

dimensions  24 x 22 x 9.5 cm
weight  2.1 kg
known s/n  41.831, 42.765

for bigger and more pictures, click on the picture
      source: H.Schneemann













Model KR



principle  pin lineal

for bigger and more pictures, click on the picture

capacity

 8 (w/o cr) x  x 9

input  full keyboard
prod. years  1955 - 1959
mach. built
features

 3 species machine

dimensions  21 x 22 x 10 cm
weight  3 kg
known s/n  17.062

for bigger and more pictures, click on the picture
      source: M.Reese

















source: W.Szrek  1938















        Model M (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w/o cr) x 5 (w/o tc) x 10

input  cursors, rotating
prod. years  ca. 1926
mach. built
features
dimensions  24.5 x 12.5 x 11.5 cm
weight  3.2 kg
known s/n  low:  17.216
 high: 29.783
for bigger and more pictures, click on the picture

                                                                                                                       source: S.Wolff









        Model ME (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 5 (w/o tc) x 10

input  cursors, rotating
prod. years  around 1936
mach. built
features  cranks for clearance
dimensions
weight
known s/n  21.537, 27.057

for bigger and more pictures, click on the picture
      source: S.Wolff













Model ME (3.)



principle  pinwheel

capacity

 6 (w cr) x 5 (w tc) x 10

input  cursors, rotating
prod. years  around 1948
mach. built
features  twin lever for clearance, lever for one-hand carriage movement
dimensions  26 x 15 x 14 cm
weight  5 kg
known s/n

for bigger and more pictures, click on the picture



















Model ME (4.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 10

input  cursors, rotating
prod. years  around 1952
mach. built
features  twin lever for clearance
dimensions  23 x 15 x 13 cm
weight  4 kg
known s/n  95,069 , 95,560
price  DM 245,- (1959)
for bigger and more pictures, click on the picture
      source: H.Schneemann















       Model MER (4.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 10

input  cursors, rotating
prod. years  around 1955
mach. built
features  back transfer, one-hand carriage movement
dimensions  26.5 x 15 x 13.5 cm
weight  4 kg
known s/n  low:  50.149
 high: 89.397
for bigger and more pictures, click on the picture









Model MEZ (2.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 5 (w tc) x 10

input  cursors, rotating
prod. years  around 1938
mach. built
features  cranks for clearance
dimensions
weight
known s/n  40.492

for bigger and more pictures, click on the picture
      source: W.Szrek















Model MEZ (3.)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 10

input  cursors, rotating
prod. years  around 1940
mach. built
features  twin lever for clearance, lever for one-hand carriage movement
dimensions
weight
known s/n  51,421

for bigger and more pictures, click on the picture
      source: F.Haeghens







last updated: 27-Nov-12
