Triumphator (1904)

Martin (US), pages 144 - 146

Martin (Dtsch), pages 154 - 155 & 463 - 465







"The Triumphator plant in Leipzig-Mölkau provided the pinwheel machine from the very beginning with two pioneering improvements, namely:

  1. A row of windows showing the amount registered by the setting levers in a straight line so that it may be conveniently checked for accuracy.

  2. The tens-carry in the revolution counter, superseding the red digits that were previously employed in competitive machines, which substantially facilitates shortcut multiplication. "



Literature:

rechts klicken zum kopieren, links zum öffnen Timetable about the Triumphator factory and models (source: Förderzentrum Pro-Chemnitz)

E.Anthes: Die Triumphator-Rechenmaschinen der ersten Serie; Historische Bürowelt 47, pages 21-23 (IFHB)

Martin Reese:  "Neue Blicke auf alte Maschinen"   (page 55 ff.)

rechts klicken zum kopieren, links zum öffnen M.Reese/E.Anthes: Triumphator-Liste: Baujahre, Seriennummern, Modelle; HBw Aktuell, Mai 2001, pages 9-12 (IFHB)





Model A

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years  1904
mach. built
features



dimensions  48 x 17 x 15 cm
weight
known s/n  125

for bigger and more pictures, click on the picture
      permission granted





Model B (a)

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1906
mach. built
features



dimensions  48 x 17 x 16 cm
weight  14 kg
known s/n  503, 517, 549

for bigger and more pictures, click on the picture
      source: W.Szrek

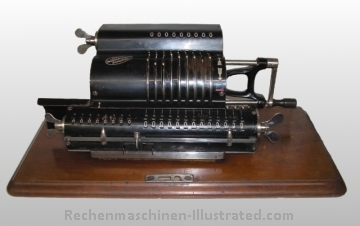

Model B (b)

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  1904
mach. built
features



dimensions  38 x 17 x 14 cm
weight  10  kg
known s/n  38, 304, 653, 812

for bigger and more pictures, click on the picture
      permission granted





Model I



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  ca. 1907 - 1920
mach. built
features



dimensions  42 x 19 x 15 cm
weight  16 kg
known s/n  low:     2.275
 high: 19.807
for bigger and more pictures, click on the picture
      source: J.Goldman







Model II & IIa



principle  pinwheel

capacity

 9 (w cr) x 10 (w tc) x 18

input  cursors, rotating
prod. years  ca. 1909 - 1920
mach. built
features

 tenth carriage in result register:

 model II:   up to 12th position

 model IIa: up to 18th position

dimensions  50 x 19 x 15 cm
weight  18 kg
known s/n

for bigger and more pictures, click on the picture









Model III / IV (Special)

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 III : 9 (w/o cr) x 8 (w tc) x 13

 IV: 9 (w/o cr) x 10 (w tc) x 18

input  cursors, rotating
prod. years  ca. 1909 - 1920
mach. built
features



dimensions  47 x 12 x 15 cm
weight  12 kg
known s/n  1.762, 1.780, 1.800

for bigger and more pictures, click on the picture
      source: W.Szrek







Model V

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1909 - 1920
mach. built
features



dimensions  35 x 19 x 17 cm
weight  12 kg
known s/n  7.259

for bigger and more pictures, click on the picture
      permission granted







Model VI

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years  ca. 1909 - 1920
mach. built
features



dimensions  44 x 19 x 15 cm
weight  14 kg
known s/n  7,612, 7,619

for bigger and more pictures, click on the picture
      source: C.Mery







Model VII / VIII

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 VII : 9 (w/o cr) x 8 (w/o tc) x 13

 VIII: 9 (w/o cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years  ca. 1909 - 1920
mach. built
features



dimensions

 VII : 32 x 19 x 13 cm

 VIII: 44 x 19 x 13 cm

weight  VII : 10 kg  VIII : 13 kg
known s/n  7,579 , 7,788

for bigger and more pictures, click on the picture
      source: W.Szrek







Model C



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1908 - 1925
mach. built
features



dimensions  36 x 16 x 11 cm
weight  8 kg
known s/n  low:  20.069
 high: 54.997
for bigger and more pictures, click on the picture

                                                                                                                       source: W.Szrek

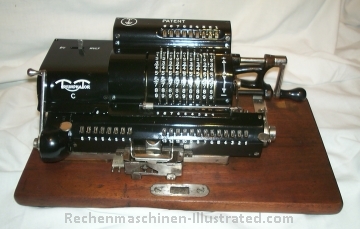

Model C1



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years
mach. built
features



dimensions  36 x 16 x 11 cm
weight  7 kg
known s/n  59,201

for bigger and more pictures, click on the picture

                                                                                                                      source: K.Schildbach















Model C2



principle  pinwheel

capacity

 9 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1925 - 1934
mach. built
features



dimensions  36 x 16 x 11 cm
weight  7 kg
known s/n  54 624, 57 652, 81 290

for bigger and more pictures, click on the picture

                                                                                                                       source: S.Wolff







Model CB



principle  pinwheel

capacity

 9 x 8 x 13

input  cursors, rotating
production years
machines built
features  2 counter registers, one with, one w/o 10th carriage

known s/n  57.253


for bigger and more pictures, click on the picture

                                                                                                                       source: F.Haeghens







Model CN



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1936 - 1950
mach. built
features



dimensions  39 x 17 x 15 cm
weight  7 kg
known s/n  low:    97.178
 high: 168.473
for bigger and more pictures, click on the picture

                                                                                                                       source: W.Szrek







Model CN1



manufacturer: VEB Triumphator-Werk, Mölkau bei Leipzig



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1953 - 1959
mach. built
features



dimensions  35 x 17 x 14 cm
weight  6 kg
known s/n  low:   176,699
 high:  250,914
for bigger and more pictures, click on the picture

                                                                                                                       source: H.Schneemann



rechts klicken zum kopieren, links zum öffnen    user manual for the Triumphator CN1 (in German, 7.6MB)







Model CR



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 x 8 x 13

input  cursors, rotating
production years  around 1938
machines built
features  back transfer

known s/n  70,411, 87,079


for bigger and more pictures, click on the picture

                                                                                                                       source: S.Wolff







Model CRN



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1940 - 1956
mach. built
features

 back transfer

dimensions  34 x 15 x 14 cm
weight  6 kg
known s/n  low:  104.000
 high: 177.438
for bigger and more pictures, click on the picture

                                                                                                                       source: H.Schneemann









Model CRN1



manufacturer: VEB Triumphator-Werk, Mölkau bei Leipzig



principle  pinwheel for bigger and more pictures, click on the picture
capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1953 - 1960
mach. built
features

 back transfer

dimensions  35 x 15 x 14 cm
weight  6 kg
known s/n  low:  176.054
 high: 254.238
for bigger and more pictures, click on the picture

                                                                                                                        source: F.Haeghens









Model CRN2



manufacturer: VEB Triumphator-Werk, Mölkau bei Leipzig



variants:

(1) plastic housing, 6.3 kg, position indicator right, closed housing

(2) plastic housing, 5.8 kg, position indicator left, open housing



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 8 (w tc) x 13

input  cursors, rotating
prod. years  1959 - 1964
mach. built
features

 back transfer

dimensions  38 x 15 x 14 cm
weight  6 kg
known s/n  267.198, 344.565, 360.053

for bigger and more pictures, click on the picture
source: K.Schildbach



















Model D



principle  pinwheel

capacity

 12 x 12 x 20

input  cursors, rotating
production years  ca. 1920 - 1925
machines built
features  weight 11 - 14 kg

known s/n  low:  21.187
 high: 40.114

for bigger and more pictures, click on the picture
source: R.Rehbein











Model D like



principle  pinwheel

capacity

 9 x 10 x 20

input  cursors, rotating
production years  1920 - 1925 (?)
machines built  possibly 1
dimensions  40 x 13 x 13 cm
features

known s/n  low:
 high:

for bigger and more pictures, click on the picture
source: W.Szrek







Model H



principle  pinwheel

capacity

 9 x 8 x 13

input  cursors, rotating
production years  1920 -
machines built
features  w/o tenth carriage

known s/n  low:  21.446
 high: 55.939

for bigger and more pictures, click on the picture

                                                                                                                       source: W.Szrek













Model H2



principle  pinwheel

capacity

 10 x 8 x 13

input  cursors, rotating
production years
machines built
features  w/o tenth carriage

known s/n  73.763


for bigger and more pictures, click on the picture

                                                                                                                       source: F.Haeghens













Model HIII



principle  pinwheel

capacity

 6 x 5 x 11

input  cursors, rotating
production years  1929 -
machines built
features  w/o left tenth carriage

known s/n  61,471, 63,198, 63,297


for bigger and more pictures, click on the picture

















Model H3



principle  pinwheel

capacity

 6 x 6 x 11

input  cursors, rotating
production years  around 1935
machines built
features

 counter register w/o tenth carriage

carriage movement by handle under the crank


known s/n  73.961, 76.029


for bigger and more pictures, click on the picture

















Model H3N



principle  pinwheel

capacity

 6 x 6 x 11

input  cursors, rotating
production years  around 1939
machines built
features

known s/n  94.811


for bigger and more pictures, click on the picture
      source: S.Wolff













Model H3Z



principle  pinwheel

capacity

 6 x 6 x 11

input  cursors, rotating
production years  around 1930
machines built
features

known s/n  low:   71.201
 high: 84.860

for bigger and more pictures, click on the picture
      source: S.Wolff













Model HN



principle  pinwheel

capacity

 10 x 8 x 13

input  cursors, rotating
production years
machines built
features

known s/n  104.291


for bigger and more pictures, click on the picture
source: S.Wolff

















Model HRN



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 11

input  cursors, rotating
prod. years  ca. 1938
mach. built
features

 back transfer

dimensions  32 x 18 x 15 cm
weight  6 kg
known s/n  88.034

for bigger and more pictures, click on the picture
source: R.-R.Chirico



















Model HZN



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w cr) x 6 (w tc) x 11

input  cursors, rotating
prod. years  around 1935 - 1940
mach. built
features



dimensions  31 x 17 x 15 cm
weight  5.5 kg
known s/n  low:    86.605
 high: 105.129
for bigger and more pictures, click on the picture
source: S.Wolff

















Model J



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 12 (w cr) x 12 (w tc) x 20

input  cursors, rotating
prod. years  around 1919
mach. built  only one known
features



dimensions  36 x 16 x 15 cm
weight  11 kg
known s/n  19.406

for bigger and more pictures, click on the picture
permission granted















Model K



principle  pinwheel

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  ca. 1914 / 15
mach. built
features



dimensions  37 x 16 x 12 cm
weight  5 kg
known s/n  8,316, 27,316

for bigger and more pictures, click on the picture
source: Antikma Auktionen - Rainer Rzepka



















Model K1



the model K1 was also marketed under the label "Premier"



principle  pinwheel for bigger and more pictures, click on the picture
capacity

 10 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  around 1935
mach. built
features



dimensions
weight
known s/n  53,876 , 75,514

for bigger and more pictures, click on the picture



















Model K2 (Sparmodell)



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 5 (w/o cr) x 4 (w/o tc) x 9

input  cursors, rotating
prod. years  ca. 1925 - 1926
mach. built
features

 addition by counter-clockwise rotation

dimensions
weight  4 kg
known s/n  38,688, 38,773, 42,797, 44,346

for bigger and more pictures, click on the picture
source: S.Wolff















Model KIII



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w/o cr) x 5 (w/o tc) x 11

input  cursors, rotating
prod. years  ca. 1925 - 1929
mach. built
features



dimensions
weight  5 kg
known s/n  58.832, 60.449, 60.458, 62.432

for bigger and more pictures, click on the picture








Model K3



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 6 (w/o cr) x 5 (w/o tc) x 11

 6 (w/o cr) x 6 (w/o tc) x 11

input  cursors, rotating
prod. years  ca. 1930
mach. built
features



dimensions
weight
known s/n  89.903
price  RM 220,- (1930)
for bigger and more pictures, click on the picture
source: M.Meissner



















for bigger and more pictures, click on the picture
source: W.Szrek









Model KA



manufacturer: VEB Triumphator-Werk, Leipzig-Mölkau



KA = Klein-Addierer



principle  tooth segment

for bigger and more pictures, click on the picture

capacity

 8 (w cr) x  x 8

input  cursors, non-rotating
prod. years  1957 - 1962
mach. built
features

 2 species

dimensions  16 x 15 x 15 cm
weight  2 kg
known s/n  65 - 17.000
price  DM 98,- (1962)
for bigger and more pictures, click on the picture



















Model KN





principle  pinwheel

capacity

 7 x 6 x 11

input  cursors, rotating
production years  ca. 1955 - 1968
machines built
features

known s/n  501.751, 501.855


for bigger and more pictures, click on the picture
source: HJ.Denker









Model P / P2



principle  pinwheel

capacity

 10 x 10 x 18

input  cursors, rotating
production years
machines built
features

known s/n  52.126, 90.900


for bigger and more pictures, click on the picture
source: S.Wolff

















Model PP ("Duplex P")



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 2 x 10 (w cr) x 10 (w tc) x 2 x 18

input  cursors, rotating
prod. years  ca. 1925 - 1930
mach. built
features

 double "C"

dimensions  43 x 13 x 12 cm
weight  19 kg
known s/n  around 51,000

for bigger and more pictures, click on the picture
source: M.Landwehr















Model PR Supra



principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 10 (w cr) x 10 (w tc) x 18

input  cursors, rotating
prod. years  ca. 1939
mach. built
features

 backtransfer

dimensions  45 x 16 x 14 cm
weight  8,5 kg
known s/n  103.000

for bigger and more pictures, click on the picture
permission granted













Model Z



principle  pinwheel

capacity

 10 x 8 x 13

input  cursors, rotating
production years  around 1930
machines built
features

known s/n  77.845. 89.653


for bigger and more pictures, click on the picture

                                                                                                                       source: S.Wolff









Thompson

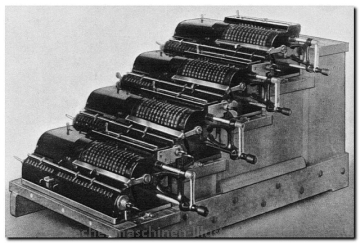

A.J. Thompson's integrating and differencing machine (1920). Thompson connected four Triumphator business machines so that the number on the register of any machine is transferred to the setting levers of the machine immediately below.
Once commercial machines could be used as difference engines, this type of lash-up was no longer necessary.







principle  pinwheel

capacity



input  cursors, rotating
production years  1920
machines built
features

known s/n


for bigger and more pictures, click on the picture

                                                                                                                       source: N.Baaijens





last updated: 15-Mrz-12
