Brunsviga Pictures 1

Brunsviga (1892)

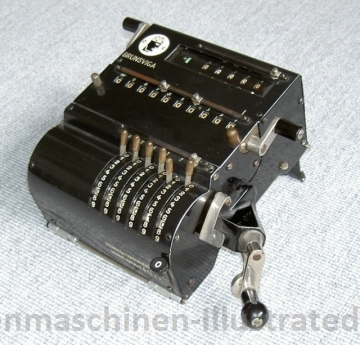

Brunsviga models before 1927

up to s/n 192,308 (ca. 1943) the model had clearance for the input, handles for the carriage movement on both sides and black color. After that (s/n 233,876 - 248,845), no clearance for the input, carriage movement only on the right side and the color was olive.

Note: later the model was named "B10" in manuals, brochures, etc. (see also Brunsviga Nova 10)

M.Reese & H.Schneemann: Die Brunsviga 10 (IFHB)

principle	divided stepped drum on two axes
capacity	6 (w cr) x 5 (w tc) x 10
input	cursors, non-rotating
prod. years	1932 - 1952
mach. built	9,853 up to 1943
features	input control register at position 7
dimensions	24 x 18 x 9 cm
weight	4 kg
known s/n	low: 136,706 high: 248,845

	for bigger and more pictures, click on the picture
		source: M.Reese

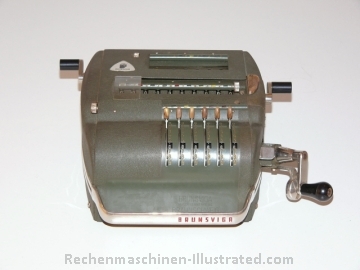

Model Nova 10

note: early machines were labeled "B10" (ca. s/n 250,725 - 256,005), then "Nova 10" (see also Brunsviga 10)

principle	divided stepped drum on one axes
capacity	6 (w cr) x 5 (w tc) x 10
input	cursors, non-rotating
prod. years	1952 -
mach. built
features	input control register at position 6
dimensions	25 x 23 x 10 cm
weight	4 kg
known s/n	low: 250,725 high: 276,701

	for bigger and more pictures, click on the picture
		source: A.Jeanroy

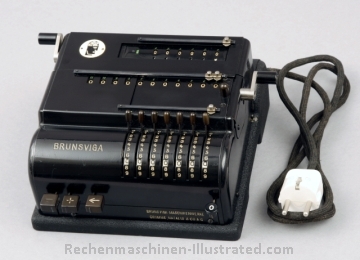

Model 11E

early prototype

protocol of the board of directors meeting March 19, 1942:

presented was the new machine Brunsviga 11E, which was derived from the Brunsviga 10 extending it by one digit and adding electrical actuation.

principle	divided stepped drum
capacity	7 (w cr) x 6 (w tc) x 11
input	cursors, non-rotating
prod. years	1941 - 1943
mach. built	just few
features	electric version of model 10
dimensions
weight
known s/n

	for bigger and more pictures, click on the picture
		source: Braunschweigisches Landesmuseum, photo: I. Simon

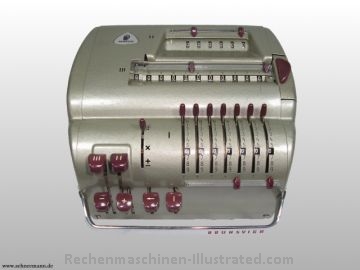

principle	divided stepped drum
capacity	7 (w cr) x 6 (w tc) x 11
input	cursors, non-rotating
prod. years	ca. 1952 - 1955
mach. built
features	electric version of model 10, stop division
dimensions	21 x 23 x 11 cm
weight	6 kg
known s/n	low: 237 970 high: 11-23 924
price	DM 860,- (1952)
	for bigger and more pictures, click on the picture
		source: H.Schneemann

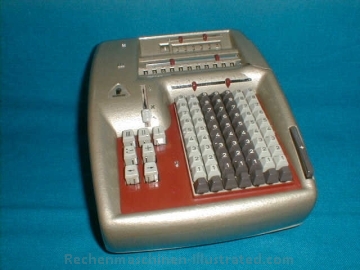

Model 11S

principle	divided stepped drum
capacity	7 (w/o cr) x 6 (w tc) x 11
input	full keyboard
prod. years	ca. 1954 - ?
mach. built
features	electric, autom. division
dimensions	24 x 35 x 15 cm
weight	8 kg
known s/n	10-2 965, 10-3 906, 11-21 023
price	DM 1160,- (1958)
	for bigger and more pictures, click on the picture
		source: HJ.Denker

Model 12A

principle	divided stepped drum
capacity	7 (w/o cr) x 6 (w tc) x 11
input	full keyboard
prod. years	1956
mach. built	never went into production
features	electric, further development of the 11S
dimensions
weight
known s/n

	for bigger and more pictures, click on the picture
		source: Braunschweigisches Landesmuseum, photo: B.Breitbach

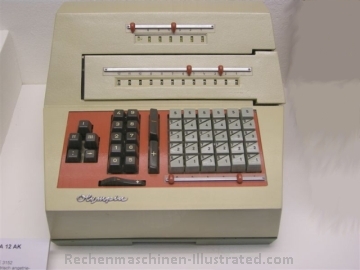

Model 12AK

principle	divided stepped drum
capacity	6 (w/o cr) x 6 (w tc) x 12
input	half full keyboard
prod. years	1962
mach. built	never went into production
features	electric, semi-autom. multiplication, autom. division
dimensions
weight
known s/n	E 3152

	for bigger and more pictures, click on the picture
		source: Braunschweigisches Landesmuseum, photo: B.Breitbach

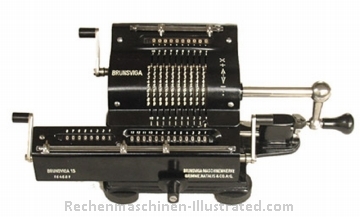

Model 13 / Nova 13

principle	pin wheel
capacity	10 (w cr) x 8 (w/o tc) x 13
input	cursors, rotating
prod. years	1927 - 1943
mach. built	32,525
features
dimensions	35 x 16 x 13 cm
weight	6 kg
known s/n	low: 114,807 high: 201,873

	for bigger and more pictures, click on the picture
		source: D.Boelter

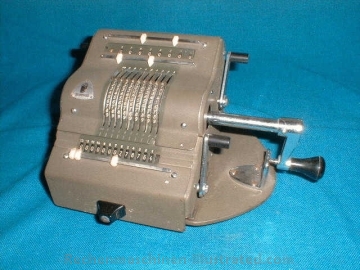

Model 13B / 13BR

principle	pinwheel
capacity	10 x 8 x 13
input	cursors, rotating
production years	1955 - 1964
machines built
features	low cost version of 13RK
	no input control register no central clearance
	13BR with back transfer
known s/n	278.764, 13-8.344, 13-84.055
	34-94.522
	for bigger and more pictures, click on the picture
		source: HJ.Denker

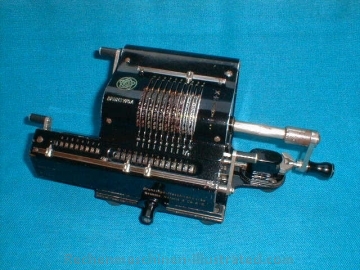

Model 13M / Nova 13M

principle	pinwheel
capacity	10 x 8 x 13
input	cursors, rotating
production years	1930 - 1931
machines built	400
features	no input control register
	no 10s carry in counter register

known s/n	132.728

	for bigger and more pictures, click on the picture
		source: HJ.Denker

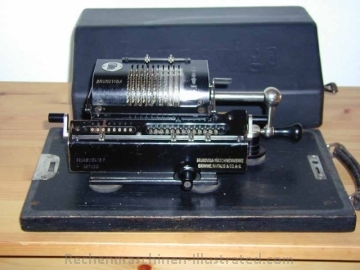

Model 13P

principle	pin wheel
capacity	10 (w/o cr) x 8 (w/o tc) x 13
input	cursors, rotating
prod. years	1935 - 1941
mach. built	2,470
features	simplified model ("Parva" = little)
dimensions	29 x 14 x 13 cm
weight	6 kg
known s/n	162,353, 165,646, 167,125, 171,762

	for bigger and more pictures, click on the picture
		source: W.Szrek

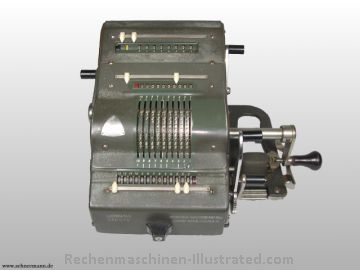

Model 13R

principle	pin wheel
capacity	10 (w cr) x 8 (w tc) x 13
input	cursors, rotating
prod. years	ca. 1952
mach. built
features	back transfer
dimensions	29 x 24 x 16 cm
weight	7 kg
known s/n	236,075, 249,737, 251,700

	for bigger and more pictures, click on the picture
		source: H.Schneemann

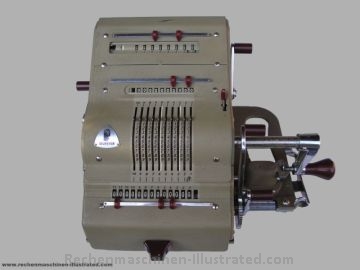

Model 13RK / 18RK

later machines were labeled "Olympia"

principle	pin wheel
capacity	10 (w cr) x 8 (w tc) x 13 (13RK) 10 (w cr) x 8 (w tc) x 18 (18RK)
input	cursors, rotating
prod. years	1952 - 1964
mach. built	most common model
features	back transfer, combined clearing
dimensions	29 x 23 x 16.5 cm
weight	7.8 kg (18RK 8.4 kg)
known s/n	275.677, 13-31.820, 13-65.772, 13-88.032

	for bigger and more pictures, click on the picture
		source: H.Schneemann

technical advertising for the Brunsviga 13RK (in German)

user manual for the Brunsviga 13RK (in German)

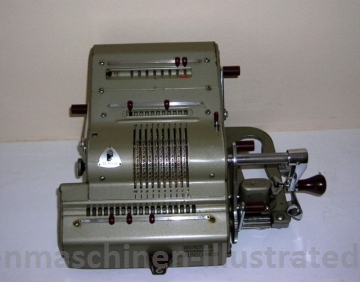

Model 13RKW / 18RKW

principle	pin wheel
capacity	10 (w cr) x 8 (w tc) x 13 (13RK) 10 (w cr) x 8 (w tc) x 18 (18RK)
input	cursors, rotating
prod. years	1950 - ?
mach. built
features	back transfer, combined clearing, reversing gear
dimensions	29 x 23 x 16.5 cm
weight	7.8 kg (18RK 8.4 kg)
known s/n	13-57,106

	for bigger and more pictures, click on the picture
		source: L.Koelewijn

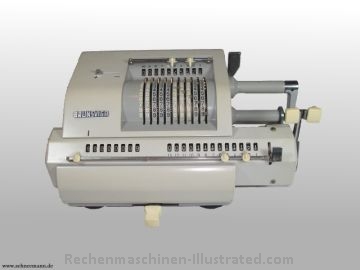

Model 13RM

produced by Olympia Werke, made in Spain

this model was also marketed under the label "Minerva"

for a user manual (in English) see this link.

principle	pin wheel
capacity	10 (w cr) x 8 (w tc) x 13
input	cursors, rotating
prod. years	ca. 1963
mach. built
features	back transfer
dimensions	34 x 20 x 11
weight	6.5 kg
known s/n	12.577, 22.223, 22.513

	for bigger and more pictures, click on the picture
		source: H.Schneemann

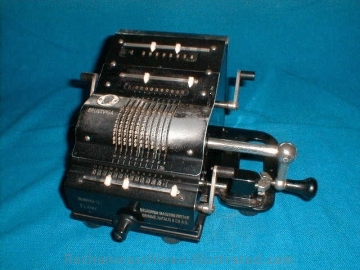

Model 13Z & 13Z/18

principle	pin wheel
capacity	10 (w cr) x 8 (w tc) x 13 resp 10 (w cr) x 8 (w tc) x 18
input	cursors, rotating
prod. years	13Z : 1929 - 1946 13Z/18 : 1929 - 1943
mach. built	13Z : 9.568 13Z/18 : 1.480
features	tens carry in counter reg (Z)
dimensions
weight
known s/n	126,304, 128,082, 202,312

	for bigger and more pictures, click on the picture
		source: HJ.Denker

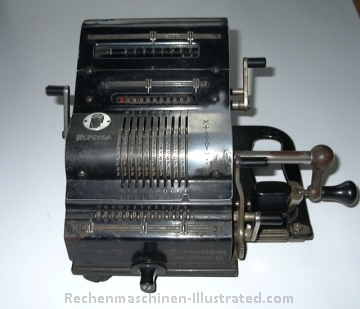

Model 13ZG / Nova13ZG / 18ZG

principle	pinwheel
capacity	10 (w cr) x 8 (w tc) x 13 10 (w cr) x 8 (w tc) x 18
input	cursors, rotating
prod. years	1930 - 1939
mach. built	3,310 (13ZG) 364 (18ZG)
features	tens carry in counter reg (Z) overall clearance (G)
dimensions
weight
known s/n	143,085, 147,845, 160,346, 161,559, 174,334

	for bigger and more pictures, click on the picture
		source: K.Czaja

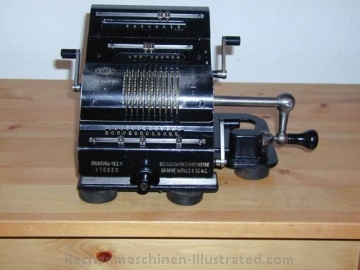

Model 13ZK & 13ZK/18

note: early models are named Nova 13ZK; some models carry the model name 13Z18K

principle	pinwheel
capacity	10 (w cr) x 8 (w tc) x 13
input	cursors, rotating
prod. years	1925 - 1950
mach. built	up to 1947: 19,349 13ZK up to 1947: 391 13ZK/18
features	tens carry in counter reg (Z) combined clearance (K)
dimensions	29 x 23 x 17 cm
weight	6 kg
known s/n	low: 145.904
	high: 227.251
	for bigger and more pictures, click on the picture
		source: W.Szrek

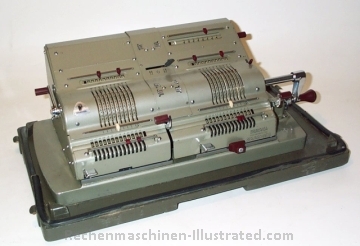

Model D13 R/1

principle	pinwheel
capacity	(10 (w cr) x 8 (w tc) x 13) + (10 (w cr) x x 13)
input	cursors, rotating
prod. years	ca. 1952 - 196x
mach. built
features	back transfer; the two machines can run in parallel or in opposite directions, the left machine can be cut off
dimensions	48 x 22 x 18 cm
weight	14 kg
known s/n	14-05.727, 34-98.131
price	DM 1.925,- (1955)
	for bigger and more pictures, click on the picture
		source: G.Martin

user manual for the Brunsviga double machines (in German)

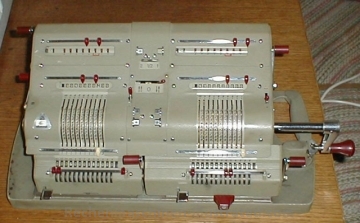

Model D13 R/2

principle	pinwheel
capacity	(10 (w cr) x 8 (w tc) x 13) + (10 (w cr) x 8 (w tc) x 13)
input	cursors, rotating
prod. years	ca. 1953 - 1961
mach. built
features	duplex machine from 2 13R; see D13 R/1
dimensions	48 x 23 x 18 cm
weight	15 kg
known s/n	257.587, 14-05.253

	for bigger and more pictures, click on the picture
		source: W.Fritsch

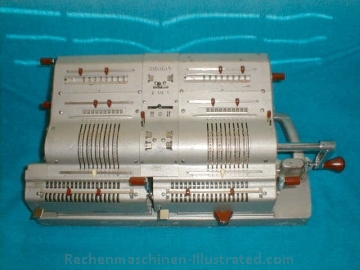

Model D18R

principle	pinwheel
capacity	(10 (w cr) x 8 (w tc) x 18) + (10 (w cr) x 8 (w tc) x 18)
input	cursors, rotating
prod. years	ca. 1960 ?
mach. built
features	duplex machine from 2 18R
dimensions
weight
known s/n	34-97.314, 34-103.499

	for bigger and more pictures, click on the picture
		source: HJ.Denker

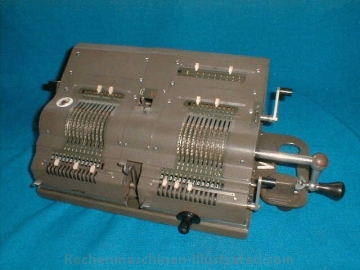

Model D13 Z/1

principle	pinwheel
capacity	(10 x 8 x 13) + (10 x 8 x 13)
input	cursors, rotating
prod. years	1930 - (1947)
mach. built	up to 1947: 2.135
features	see D13Z/2
dimensions
weight
known s/n	169.613 , 209.003

	for bigger and more pictures, click on the picture
		source: HJ.Denker

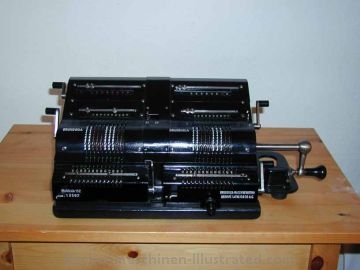

Model D13 Z/2 & D13 Z18/2

note: some machines were equipped with "Einstell-Platte", ("E-Pl", input matrix, used to enter constants etc. quickly.)

principle	pinwheel
capacity	(10 x 8 X 13) + (10 x 8 x 13)
input	cursors, rotating
prod. years	1934 - 1953
mach. built	up to 1947: 676 + 168 (w.E-Pl)
features	can work as a single machine,
	two machines, one adding and
	another subtracting or two
	machines both adding or
	subtracting at the same time
known s/n	171.022, 186.844, 213.592
	for bigger and more pictures, click on the picture
		source: W.Szrek

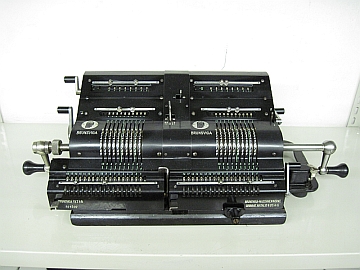

Model D13 Z18 "Koordinatenmaschine"

second crank on the left side so the two machines can be used truly independent

principle	pinwheel
capacity	(10 x 8 x 18) + (10 x 8 x 18)
input	cursors, rotating
prod. years	1939
mach. built	only one known
features	see above




known s/n	181.500
	for bigger and more pictures, click on the picture
		permission granted

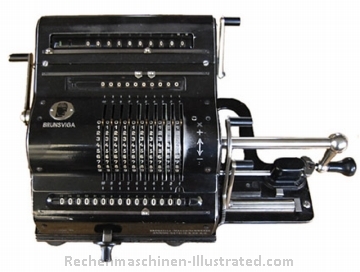

Model 15 & 15E

principle	pinwheel
capacity	10 (w cr) x 10 (w tc) x 15
input	cursors, rotating
prod. years	1935 - 1947
mach. built	7,475
features	back transfer; 15E: thumbwheels for result register
dimensions	41 x 23 x 17 cm
weight	11 kg
known s/n	146.223, 146.371, 148.582, 168,189, 172.186, 202.966

	for bigger and more pictures, click on the picture
		source: D.Boelter

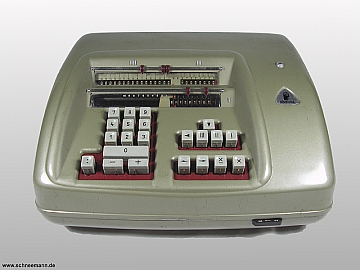

Model 16E

principle	pinwheel
capacity	10 (w cr) x 8 (w tc) x 16
input	10 key board
prod. years	1955 - 1958
mach. built	2.146
features	electric, autom.division, back transfer, solenoids as active elements
dimensions	35 x 33 x 18 cm
weight	17 kg
known s/n	16-03243
price	DM 2.180,- (1957)
	for bigger and more pictures, click on the picture
		source: H.Schneemann

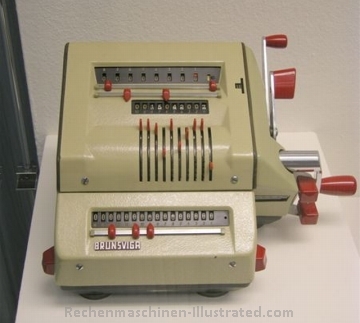

Model 16RK

principle	pinwheel
capacity	10 (w cr) x 8 (w tc) x 16
input	cursors, rotating
prod. years	1957
mach. built	never went into production
features	back transfer
dimensions
weight
known s/n	E-3138

	for bigger and more pictures, click on the picture
		source: Braunschweigisches Landesmuseum, photo: B.Breitbach

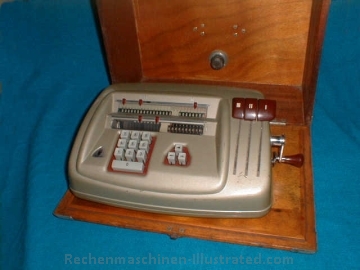

Model 16T

principle	divided pinwheel
capacity	10 (w cr) x 8 (w tc) x 16
input	10 key board
prod. years	1955 - 1958
mach. built	ca. 4.100
features	Facit-System
dimensions	40 x 27 x 15 cm
weight	8 kg
known s/n	15-02689, 15-03005, 15-06114
price	DM 890,- (1956)
	for bigger and more pictures, click on the picture
		source: HJ.Denker

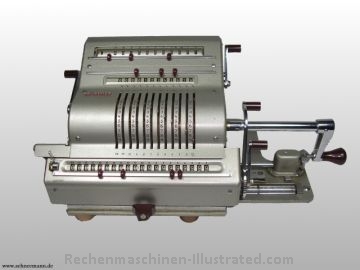

Model 20

principle	pinwheel
capacity	12 (w cr) x 11 (w tc) x 20
input	cursors, rotating
prod. years	1934 - 1963
mach. built	8,604 up to 1947
features	back transfer result register can be split (10 + 10) to use the left part as storage available with or without thumb- wheels in result register
dimensions	41 x 22.5 x 17.5
weight	12 kg
known s/n	184.469, 250.180, 12-32.571 34-103.703, 34-110.202

	for bigger and more pictures, click on the picture
		source: H.Schneemann

technical advertising for the Brunsviga 20 (in German)

user manual for the Brunsviga 20 (in German)

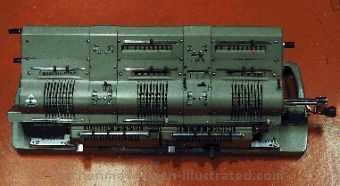

Model B183

	principle	pinwheel
	capacity	(9 + 9 + 9) x (8 + 8) x (18 + 18)
	input	cursors, rotating
	prod. years	1954
	mach. built
	features	3 input registers, 2 result registers, back transfer
	dimensions
	weight
	known s/n	34-103 875

		for bigger and more pictures, click on the picture

last updated: 17-Jun-13
