The Original Odhner (1874)

Martin (US), pages 65 - 71

Martin (Dtsch), pages 69 - 75 & 441 - 442





Next Swedish production

Next Soviet (past revolution) production







The Odhner was made by Willgodt T. Odhner of St.Petersburg, based on his invention from 1874. Large-scale manufacture did not commence until 1886 when the W.T.Odhner factory was built. During the late revolution the factory in St.Petersburg became the property of the state, the equipment was moved to Moscow, and soon the manufacture was entirely discontinued. However, Odhner's legal successors went to Sweden where they founded the Aktiebolaget Original Odhner in Göteborg and resumed the manufacture of the Original Odhner.

Odhner in Russia and Baldwin in the US patented their machines based on a similar mechanical principle: pinwheel machine (see Martin, page 12). Many machines that you will see on this web site are so-called Odhner type machines. In 1907, to differ own production from other Odhner type machines, the name was changed to Original Odhner.



General Information

Please look at Christofer Nöring's web page  and Kevin Odhner's web page as these are the most interesting sites on this subject. We borrowed very heavily from these sites. We also learned a lot from Timo Leipälä about Odhner calculators.



Timo Leipälä : "The life and works of W. T. Odhner":

part 1:

rechts klicken zum kopieren, links zum öffnen   The life and works of W. T. Odhner  (with permission of the author)

At the 2. Greifswalder Symposium zur Entwicklung der Rechentechnik, 12. - 14. September 2003

part 2:

rechts klicken zum kopieren, links zum öffnen   The life and works of W. T. Odhner  (with permission of the author)

At the 3. Greifswalder Symposium zur Entwicklung der Rechentechnik, 28. Sept. - 1. Oct. 2006





Links

        Christopher Norig - Odhner family tree

        Kevin Odhner - Odhner Calculators

        Sergei Frolov - SOVIET CALCULATORS COLLECTION

        John Wolff's Web Museum - Original-Odhner Model 127

         Detlev Bölter - Original-Odhner Modell 29





History of logo (from Christofer Nöring's page)

Some time between 1900 and 1907, the Cyrillic lettering АРИӨМОМЕТР (Arithmometer) was changed into АРИФМОМЕТР (Arifmometer).
The
ОРИГИНАЛЬ-ОДНЕРЬ (Original-Odhner with "harsh" final consonant) name is used from 1907, the "Petrograd" name for Saint Petersburg about 1914.
On the Soviet models the new ortography was used:
ОРИГИНАЛ-ОДНЕР . From 1918 on, the Odhner was built in Sweden, early models bearing the "Arithmos" name.

In 1907 the name was changed to Original Odhner (models with writing in Cyrillic were still sold under Odhner’s arithmometer name).





Advertising



source: K.Odhner



Patents

Drawing from the Swedish patent 3264, Sept.26, 1890

for more patent drawings, click on the picture



          Original Odhner - model description

          Original Odhner - serial numbers





Russian pre-revolution production

Odhner 1874

principle  pinwheel

capacity
production years  1874
machines built   ?????
features





for bigger and more pictures, click on the picture
      source: Martin

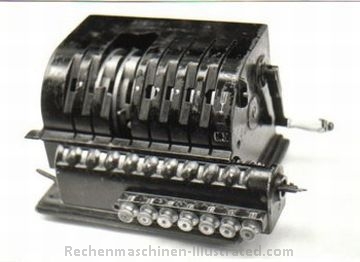

Odhner 1877

Cris Vande Velde trip report from the Smithsonian Institution

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 8 (w cr) x 7 (w/o tc) x 10

input  cursors, rotating
prod. years  1877
mach. built  ca. 50
features



dimensions
weight
known s/n  5, 9, 11

for bigger and more pictures, click on the picture
      source: Smithsonian Institution / photo: Cris Vande Velde

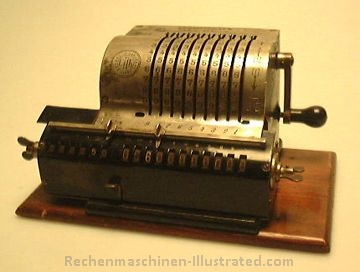

Early Odhner models

principle  pinwheel

capacity
production years
machines built
features

s/n   21 - 313



for bigger and more pictures, click on the picture
      source: Tekniska Museet Stockholm









Odhner-Hill

Hill was an investor in the Odhner company; the last Odhner-Hill machine was made in 1896 - 1897. This machine with series number 1326 was later upgraded, long handle and reset of levers suggest that this was done after 1907.

principle  pinwheel

capacity   9 x 8 x 13
production years
machines built
features

s/n    1,326



for bigger and more pictures, click on the picture
      source: S.Frolov









Odhner 1897

principle  pinwheel

capacity   9 x 8 x 13
production years
machines built
features

s/n   1,341



for bigger and more pictures, click on the picture
      source: W.Szrek









Odhner s/n 3,023

The logo on early pictures and/or prints seems to be brighter as if it was inlaid with copper. This machine was restored accordingly.

principle  pinwheel

capacity   9 x 8 x 15
production years
machines built
features





for bigger and more pictures, click on the picture
      source: T.Hampel









Odhner s/n 3,357

this is the highest s/n known with a short handle

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years
mach. built
features



dimensions
weight
known s/n

for bigger and more pictures, click on the picture
      source: W.Szrek









Odhner Model A / Ag

model A w/o tell-tale bell, model Ag with tell-tale bell

ser.no: 4 194 the earliest image known with a long handle

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years  1907 - 1917
mach. built
features



dimensions
weight
known s/n  low:  4 194  high: 27 658

for bigger and more pictures, click on the picture
      source: A.Plamondon





Odhner Models A / Ag with Fast Clear and Decimal Shift

principle  pinwheel

capacity

 9 (w/o cr) x 8 (w/o tc) x 13

input  cursors, rotating
prod. years
mach. built
features

 fast clearing, decimal shift

dimensions
weight
known s/n  16 107, 16.698, 17 265

for bigger and more pictures, click on the picture
source: W.Szrek





Odhner Model B / Bg

model B w/o tell-tale bell, model Bg with tell-tale bell

principle  pinwheel

capacity

 9 (w/o cr) x 8 (w/o tc) x 15

input  cursors, rotating
prod. years  1907 - 1917
mach. built
features



dimensions
weight
known s/n  6,166, 13,767

for bigger and more pictures, click on the picture
      source: W.Szrek





Odhner Model C / Cg

model C w/o tell-tale bell, model Cg with tell-tale bell

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years  1907 - 1917
mach. built
features



dimensions
weight
known s/n  8.693, 14.005

for bigger and more pictures, click on the picture





Odhner Models C with Decimal Shift and Fast Clear

principle  pinwheel

for bigger and more pictures, click on the picture

capacity

 9 (w/o cr) x 10 (w/o tc) x 18

input  cursors, rotating
prod. years
mach. built
features

 decimal shift; fast clearance both sides; 10ths carry up to 13 position

dimensions
weight
known s/n  16.152

for bigger and more pictures, click on the picture
      source: S.Wahlqvist
